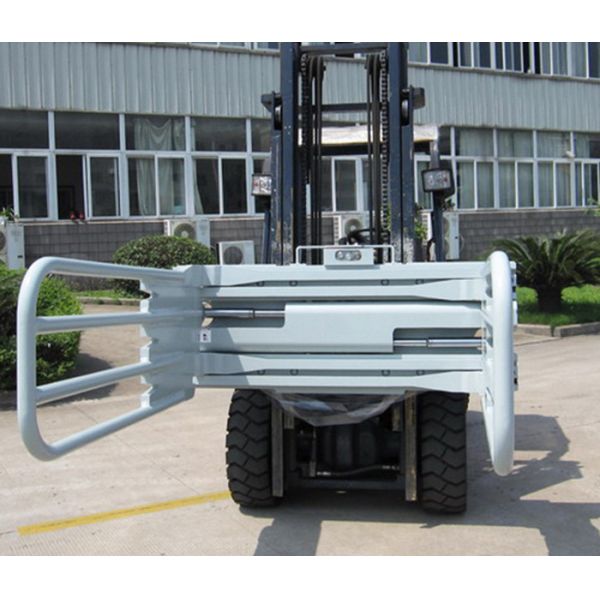

Forklift Bale Clamp Forklift Attachment 1000kg
Functions & Applications
Suitable for all kinds of paper bags, cotton bags, wool bags, chemical fiber bags and other soft bags material shipment.High efficiency and economy to handle in without work platform condition.
Features
* Proven durable T-beam arm aluminum frame construction.
* Excellent driver visibility.
* Welcome OEM.
* Provide whole solutions from production to handle .
Options
* Custom opening ranges
* Custom pad size
* Various mounting classes available
* Load backrests
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
A (mm) | Arm Height
H (mm) | Arm
Length
L (mm) | Frame
Width
B (mm) | Arm
Thickness
C (mm) | Overall
Height
(mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 1000@500 | FMS20D-006A | II | 900-2300 | 600 | 1500 | 1041 | 50 | 665 | 221 | 475 | 167 | 280 |
Remark:
1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.Remark:
2. Two sets additional oil circuit required on forklift.
3. Opening range is the space between two arms tip.
4. Arm thickness “C” is the actual requested operation space.
Other size available on request.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min.
Hydraulic
Flow(L/min) | Rec.
Hydraulic
Flow(L/min) | Max.
Hydraulic
Flow(L/min) | Min.
Hydraulic
Pressure(Bar) | Max.
Hydraulic
Pressure(Bar) |
| FMS20D | 15 | 25 | 25 | 35 | 160 |
| FMS30D | 15 | 40 | 40 | 35 | 160 |
Options:
* Left and right clip arm independent movement type.
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Construction works
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
