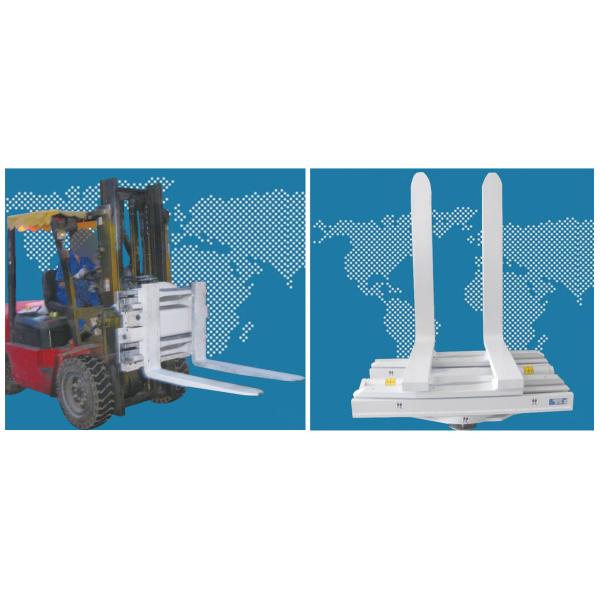

Forklift Sideshifting fork clamp with 1065mm fork
Product Description
CFS20D-004A Fork Length 915mm, Frame Width 940mm, Overall Height 666mm, Vertical Center of Gravity 185mm
CFS20D-005A Fork Length 1065mm, Frame Width 940mm, Overall Height 660mm, Vertical Center of Gravity 175mm
CFS20D-006A Fork Length 1220mm, Frame Width 940mm, Overall Height 660mm, Vertical Center of Gravity 170mm
Options
* Fork sizes
* Various mounting classes available
* Custom opening ranges
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
(mm) | Fork
Length
A(mm) | Frame
Width
B (mm) | Overall
Height
H (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 1600@600 | CFS20D-004A | II | 410-1660 | 915 | 940 | 660 | 185 | 295 | 180 | 168 |
| 1600@600 | CFS20D-005A | II | 410-1660 | 1065 | 940 | 660 | 175 | 306 | 180 | 198 |
| 1600@600 | CFS20D-006A | II | 410-1660 | 1220 | 940 | 660 | 170 | 328 | 180 | 231 |
Remark:
1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.
2. Two sets additional oil circuit required on forklift.
3. Opening range is the space between two arms tip.
4. Special arm can be added on the fork clamp as required.
5. Provide the different fork demand as required.
Other size available on request.
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Machinery RepairShops, Manufacturing Plant
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
